SF Series
IL-FISS-IRSF4 Lite
Specifications * The specifications are subject to change
© Copyright 2024 INFiLED. INFiLED is a trademark of SHENZHEN INFiLED ELECTRONICS Co, LTD. The information contained herein is subject to change without notice. INFiLED shall not be liable for technical or editorial errors or omissions contained herein. For more information, please contact your local sales manager.
In / out Indoor
Pixel pitch 4mm
Physical density 62.500pixels/㎡
Led arrangement 3-in-1 SMD

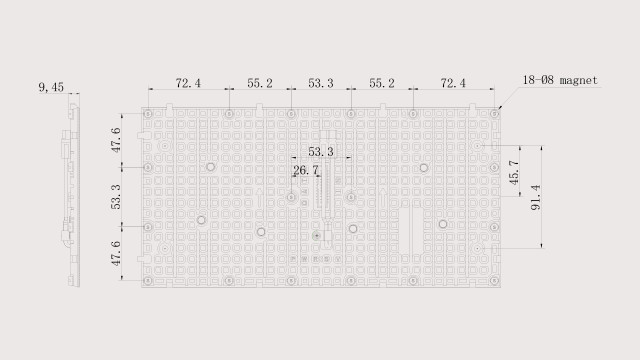

Module dimensions 320x160mm (12,60x6,30inch)
Cabinet resolution (H/V) 80x40pixels
Cabinet dimensions 320x160mm (12,60x6,30inch)
Cabinet weight 1 kg (0,50lb)
Brightness 800nits
Max power consumption (W/Panel) 24
Avg power consumption (W/Panel) 8
Viewing angle H/V) 160°/160°
Scan rate 1/10
Operating power source 100-240V AC, 50/60Hz
Operating temperature -10℃~+45℃
Refresh rate 1.920Hz
Ip rating IP30
Transparency 0%
Signal input source DVI. HDMI. DP. SDI
Certifications CB. CE. RoHS. REACH. ETL. FCC
