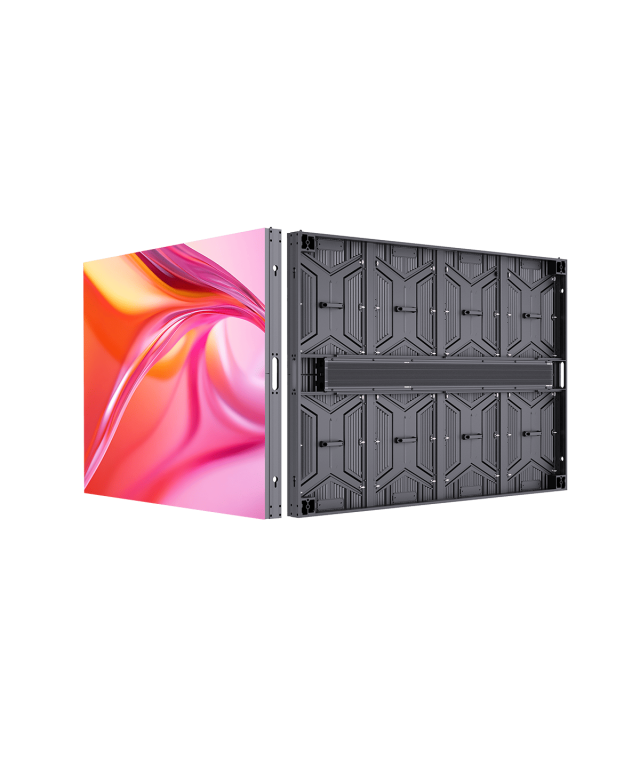

HM Series
IL-FISS-ORHM8-Plat
Specifications * The specifications are subject to change
© Copyright 2024 INFiLED. INFiLED is a trademark of SHENZHEN INFiLED ELECTRONICS Co, LTD. The information contained herein is subject to change without notice. INFiLED shall not be liable for technical or editorial errors or omissions contained herein. For more information, please contact your local sales manager.
In / out Outdoor
Pixel pitch 8mm
Physical density 15,625 pixels/m²
Led arrangement 3 IN 1 SMD
Module dimensions 320x480mm (12.60x18.90inch)
Cabinet resolution (H/V) 160x120pixels
Cabinet dimensions 1280x960mm (50.39x37.80inch)
Cabinet weight 32.5kg (71.65lb)
Brightness 10,000nits
Max power consumption (W/Panel) 737
Avg power consumption (W/Panel) 246
Viewing angle H/V) 160°/100°
Scan rate 1/5
Operating power source 100-240V AC 50/60 Hz
Operating temperature -20℃ ~ +50℃
Refresh rate 7680 Hz
Ip rating IP65
Transparency 0%
Signal input source DVI, HDMI, DP, SDI
Certifications CE, CB, FCC, ETL, ROHS, REACH
