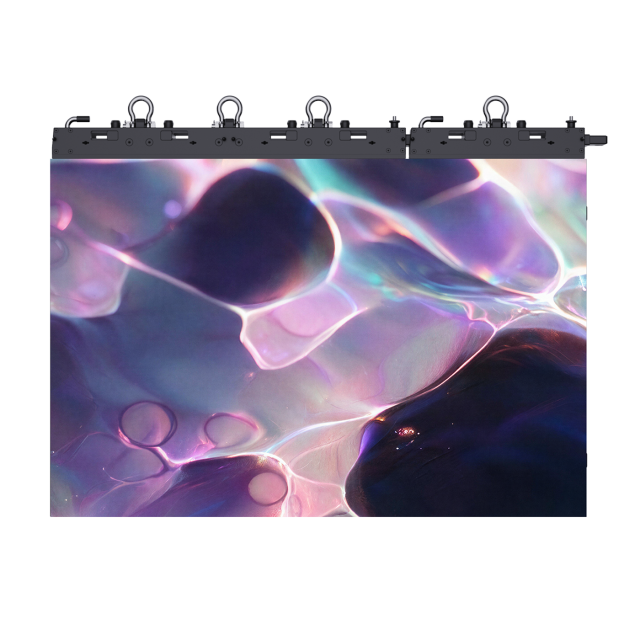

ARmk2 Series
IL-RSS-IRAR2.9mk2 Pro
Specifications * The specifications are subject to change
© Copyright 2024 INFiLED. INFiLED is a trademark of SHENZHEN INFiLED ELECTRONICS Co, LTD. The information contained herein is subject to change without notice. INFiLED shall not be liable for technical or editorial errors or omissions contained herein. For more information, please contact your local sales manager.
In / out Indoor
Pixel pitch 2,97mm
Physical density 112.896 pixels/㎡
Led arrangement 3-in-1 SMD
Module dimensions 250x500mm (9,84x19,69inch)
Cabinet resolution (H/V) 168x336pixels
Cabinet dimensions 500x1000mm (19,69x39,37inch)
Cabinet weight 12,5kg (27,56lb)
Brightness 1000nits
Max power consumption (W/Panel) 360
Avg power consumption (W/Panel) 120
Viewing angle H/V) 160°/160°
Scan rate 1/28
Operating power source 100-240V AC, 50/60Hz
Operating temperature -10℃~+45℃
Refresh rate 3.840Hz
Ip rating IP30
Signal input source DVI. HDMI. DP. SDI
Certifications CE. ETL. FCC. RoHS. REACH. WEEE. Fireproof
