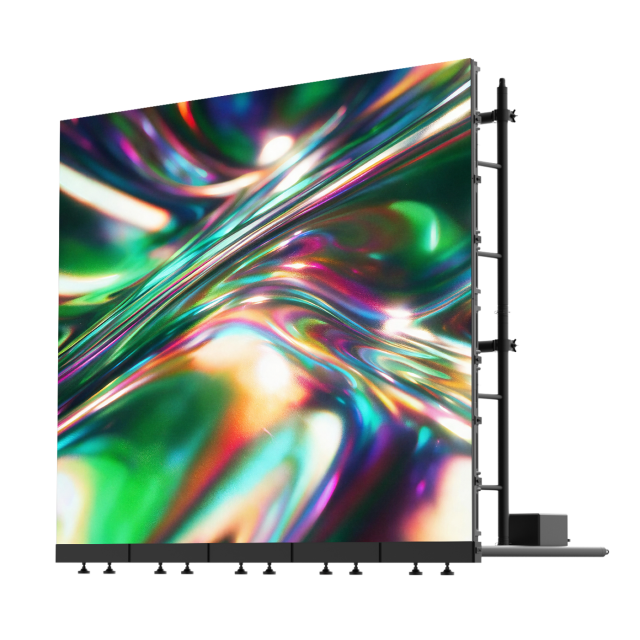

NX Series
IL-RSS-ORNX3.91
Specifications * The specifications are subject to change
© Copyright 2024 INFiLED. INFiLED is a trademark of SHENZHEN INFiLED ELECTRONICS Co, LTD. The information contained herein is subject to change without notice. INFiLED shall not be liable for technical or editorial errors or omissions contained herein. For more information, please contact your local sales manager.
In / out Outdoor
Pixel pitch 3.91mm
Physical density 65,536 pixel/m²
Led arrangement 3 IN 1 SMD
Module dimensions 250x500mm (9.84x19.69inch)
Cabinet resolution (H/V) 128x256pixels
Cabinet dimensions 500x1000mm (19.69x39.37inch)
Cabinet weight 10.9kg (24.03lb)
Brightness 5000nits
Max power consumption (W/Panel) 300
Avg power consumption (W/Panel) 100
Viewing angle H/V) 160° / 160°
Scan rate 1/8
Operating power source 200-240V AC, 50/60Hz
Operating temperature -10℃ ~ +45℃
Refresh rate 7,680Hz
Ip rating IP65
Transparency 0%
Signal input source DVI, HDMI, DP, SDI
Certifications CE, CB, FCC, CCC, RoHS
