Overview

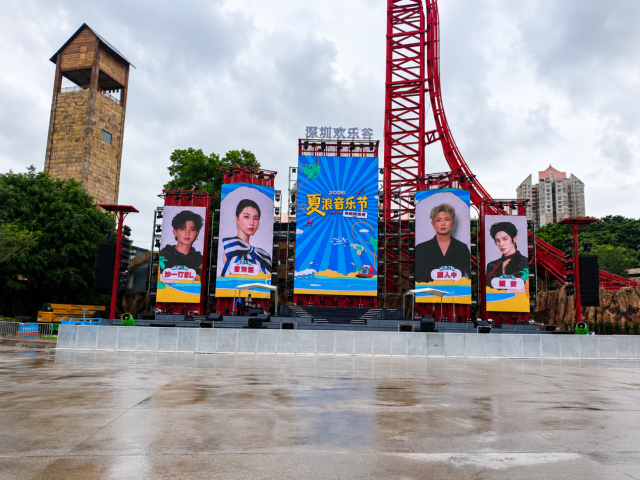

For its 2026 summer programme, Shenzhen Happy Valley introduced a 235 m² five-screen outdoor rental LED display featuring INFiLED AP Series. Comprising 940 P3.91 LED display cabinets, the installation rises to 12 metres at the centre, with four progressively lower screens extending to either side.
The layered arrangement establishes a clear focal point while extending the creative space across the full width of the stage. It provides a strong visual setting for live entertainment, seasonal campaigns and changing programme content, placing Shenzhen Happy Valley’s own summer ideas at the centre of the experience.
Five Screens Define the Outdoor LED Stage
The installation centres on a 7 × 12 metre display covering 84㎡. Two 5 × 9.5 metre inner screens add 47.5㎡ on each side, followed by two 3.5 × 8 metre outer screens covering 28㎡ each.
Their descending heights create a clear visual order. The central display commands attention, the inner pair introduces angled planes that add depth, and the outer screens extend the arrangement towards both stage wings. From a distance, the stepped silhouette gives the performance area a distinctive profile; together, the five surfaces read as one considered stage design.
This hierarchy also creates defined spaces for different types of content. A key image may occupy the centre, coordinated scenes may develop across selected displays, or a sequence may expand through the complete five-screen arrangement. The structure remains consistent while each performance or campaign establishes its own visual character.
The Layout Expands the Creative Canvas
A single rectangular screen concentrates content in one place. This five-screen layout opens a broader range of creative approaches, allowing imagery to remain focused at the centre, move across the surrounding displays or unfold throughout the entire stage.
Across the installation, INFiLED AP Series image performance keeps that content clear and consistent. Outdoor brightness of up to 5,000 nits maintains vivid colour as ambient light changes. A refresh rate of up to 7,680 Hz supports fluid motion and clean on-camera reproduction, while a 10,000:1 contrast ratio preserves detail across bright graphics, video footage and deeper visual tones. Wide viewing angles support clear image visibility from a broad range of audience positions.
Together, these qualities maintain consistent colour, detail and movement across screens of different sizes and orientations. Creative teams gain a wider field for shaping pace, emphasis and visual progression, while audiences experience the five displays as parts of the same scene.
AP Series Delivers the Outdoor Rental Design at Scale
As part of INFiLED’s rental LED display solutions, the AP Series combines the cabinet precision, handling efficiency and service access required across this 940-cabinet installation.
- Fast, precise assembly: A lightweight magnesium-alloy structure combines a simplified frame with reduced internal wiring. INFiLED’s patented quick-lock system secures an individual cabinet connection in approximately five seconds, while positioning columns guide consistent alignment across hundreds of adjoining cabinets.
- Protection for outdoor rental operation: IP65-rated cabinets are suited to outdoor environments exposed to rain, moisture and dust. ArmorLED technology adds protection around the LEDs during transportation, installation and operation, strengthening durability through the demands of handling and outdoor production.
- Efficient thermal management and servicing: A 4.2 V energy-saving IC works alongside enlarged heat-dissipation ribs and optimised cooling around the PDU, supporting efficient thermal management during extended outdoor operation. Rear-service access across all five screens and a quick-detachable PDU keep essential components readily accessible behind the stage.
Together, these features maintain accurate alignment across the five screens and keep rear servicing straightforward, allowing the engineering to support the scale of the installation without competing with the content on screen.
