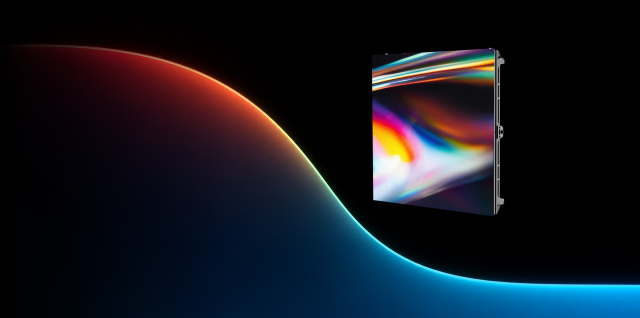

Indoor and outdoor performance across the full pixel pitch range.

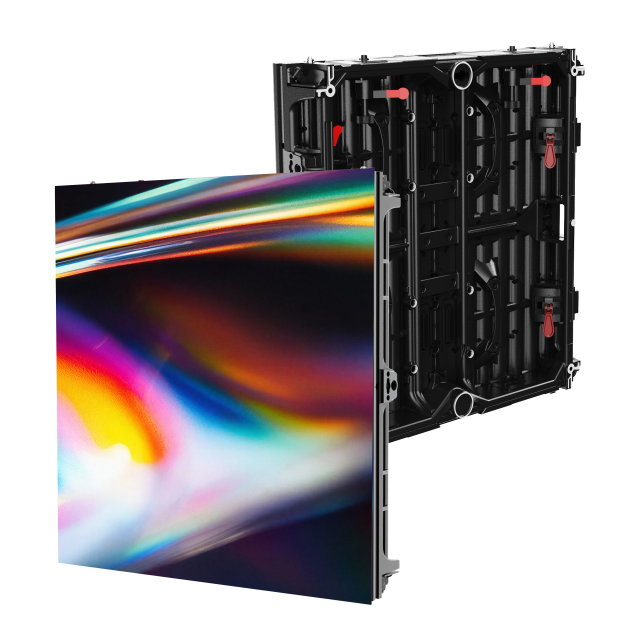

GXmk2 enables curved and design-led builds with a wide range of pixel pitches and rental-ready mechanics. A lightweight magnesium-aluminum structure, IP65 front protection, retractable corner guards, ±10° curvature and easy servicing — covering camera-critical and creative applications.
1.9 – 6.9
mm pixel pitch — fine pitch to large stage
±10°
concave & convex curvature, five adjustable angles
5000 nits
peak brightness for outdoor use
Pixel pitchIndoor 1.9, 2.5, 2.9, 3.9, 4.8 mm · Outdoor 3.9, 4.6, 5.9, 6.9 mm
Brightness800 – 5000 nits
Technologies
ArmorLED

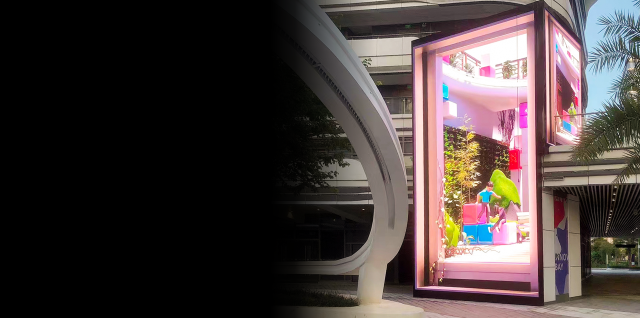

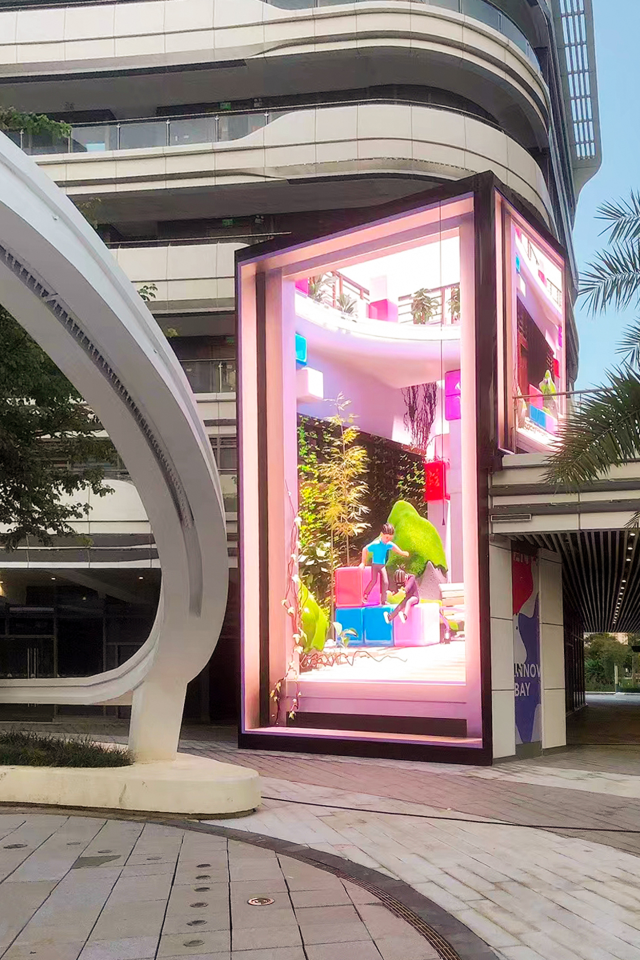

Made to be rebuilt, from stages to open-air events
Rental and touring environments need platforms that survive frequent handling and adapt to creative curved or right-angle builds — without compromising weight or protection. GXmk2 refuses the compromise.
ArmorLED combines triple LED reinforcement techniques, 8-pin LEDs, an Enhanced-Pad design and advanced GOE packaging, and it increases LED adhesion strength by 4–10×. The result is a more durable rental display designed to resist impact, transport stress and repeated handling.

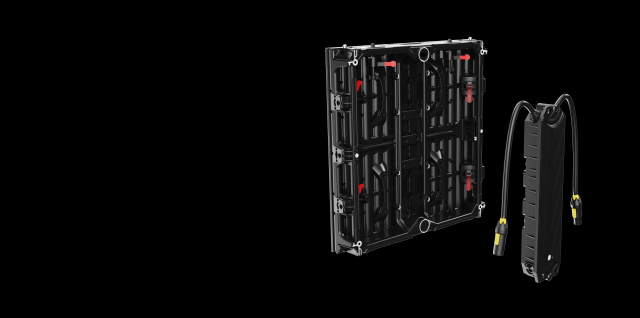

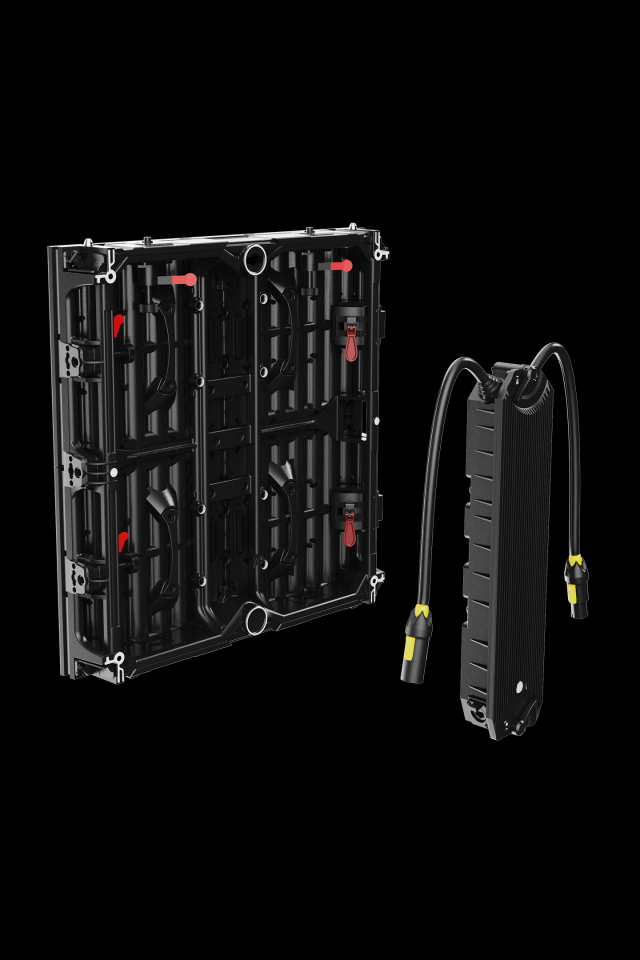

4.5V low-power ICs, exchangeable power and data modules, IP65 front protection, and up to 7,680 Hz refresh deliver energy-efficient, durable, rental-ready performance indoors and out.

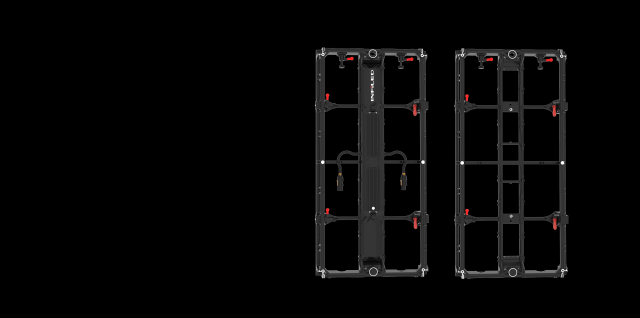

Magnesium and aluminum alloy frame reduces rigging load while maintaining structural strength.

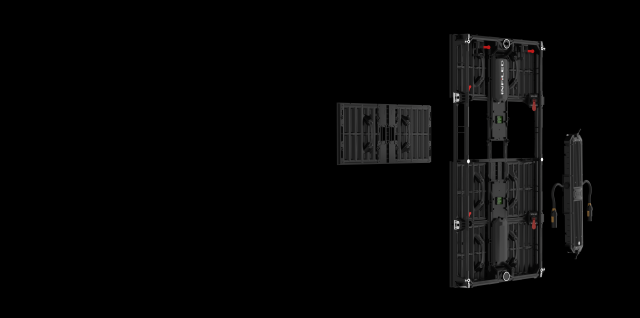

Tool-free module replacement reduces maintenance time and downtime.
Built to survive frequent rebuild cycles while maintaining consistency.
Supports 90° corner configurations for creative stage and architectural builds.
From 1.95 mm fine pitch to 6.94 mm outdoor, covering indoor, XR, and large-stage applications.
Curve it, corner it, take it outside. Three configurations.

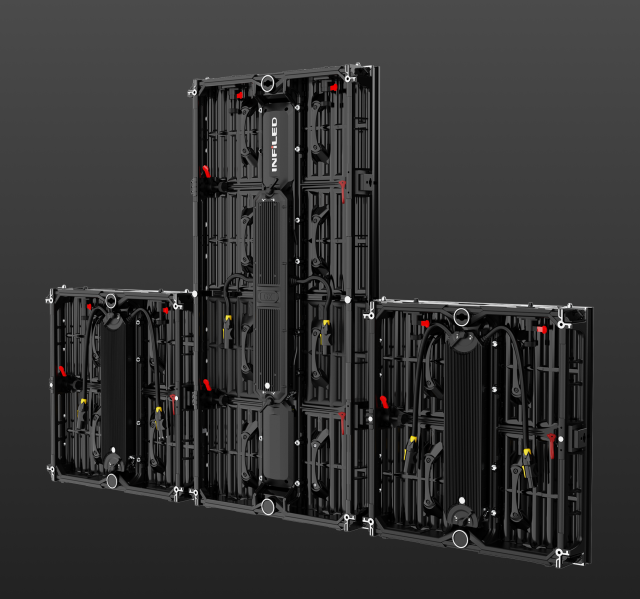

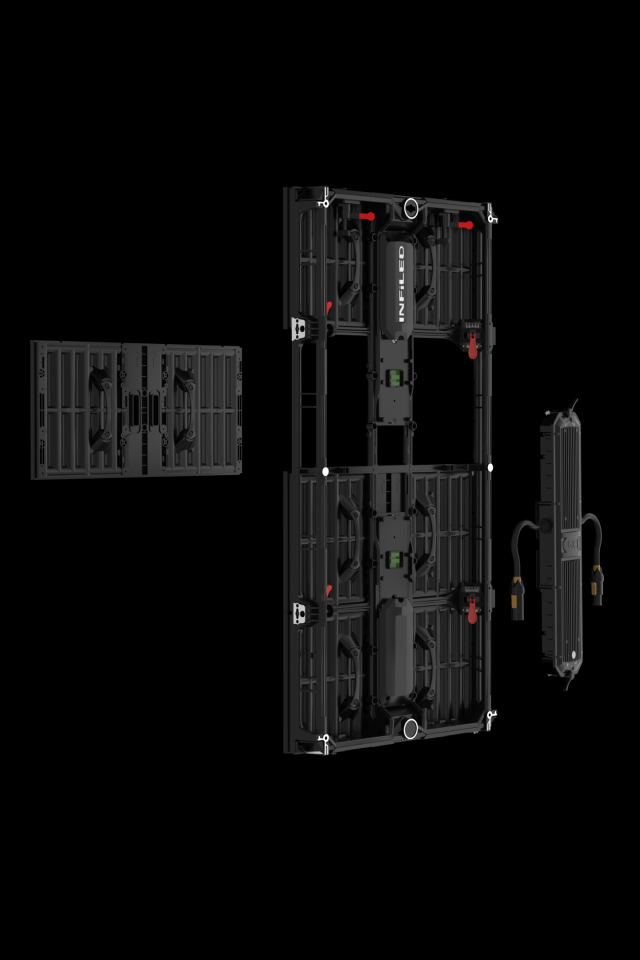

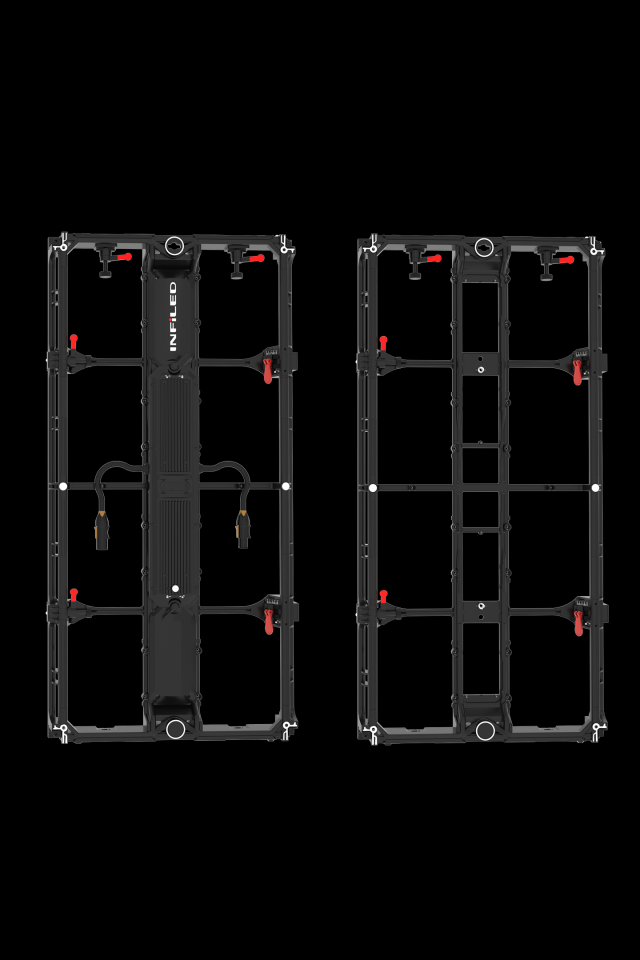

Flown / hoisted Lightweight hybrid cabinets in 500×1000 and 500×500 mm formats reduce rigging load on any structure.

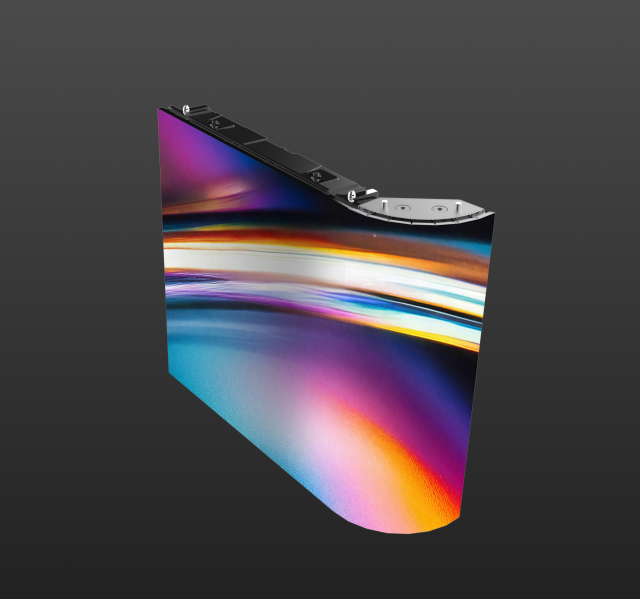

Curved configurations Concave and convex ±10° with five adjustable angles for creative stage designs.

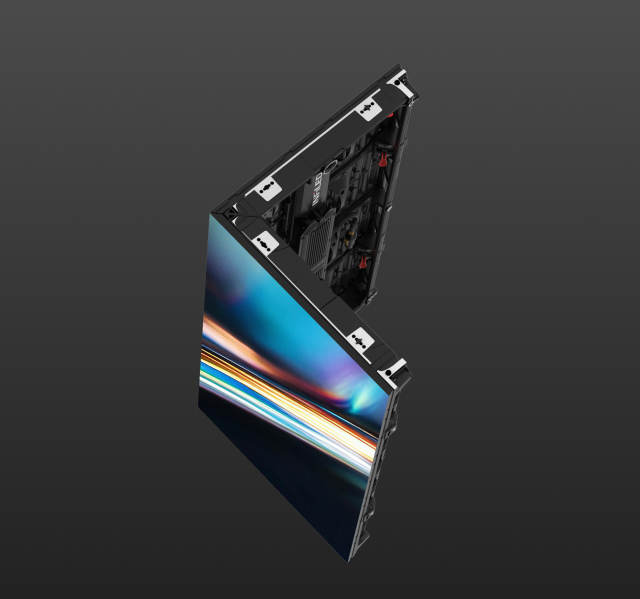

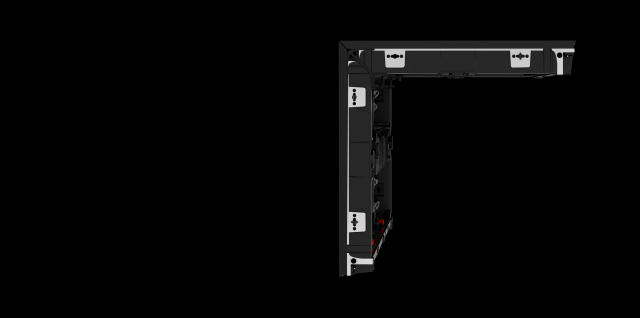

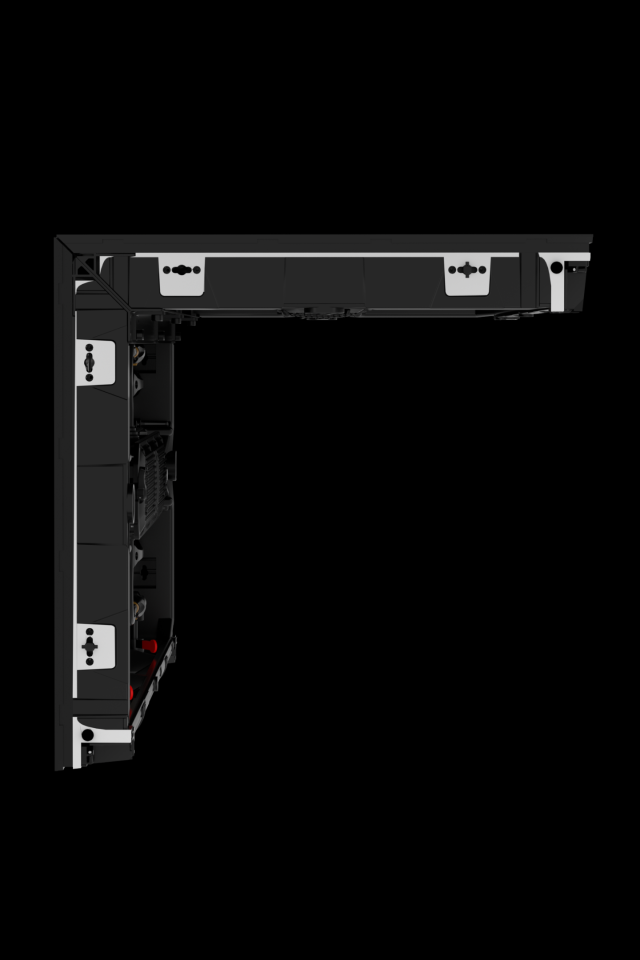

Right-angle builds 90° corner configurations for creative stage and architectural applications.
