DFmk2 Series

Where technology dances with creativity

DFmk2 Series is robust, easy to assemble, and unleashes the power of innovative digital flooring
DFmk2 Series

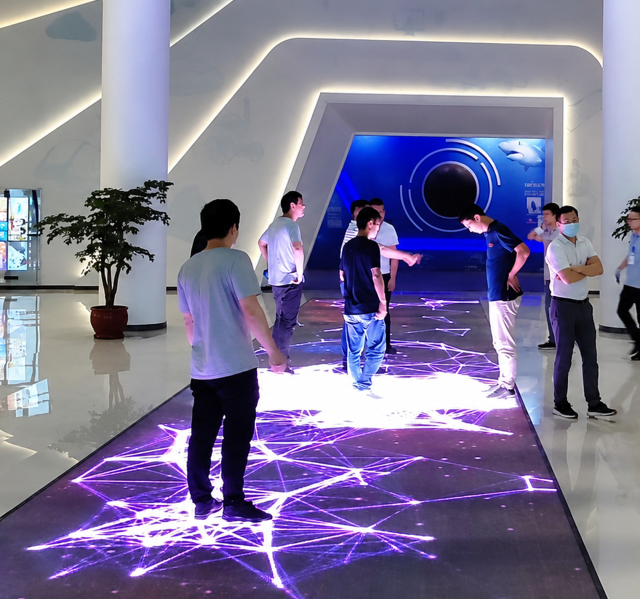

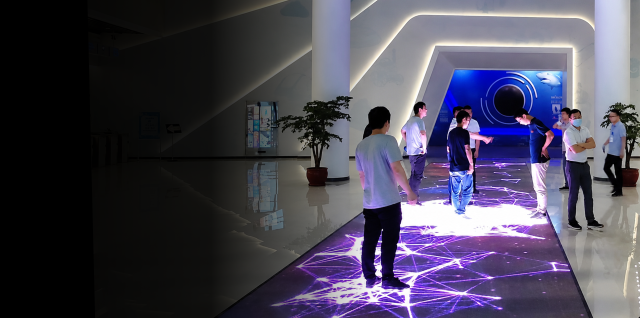

Interactive dance
floor solution

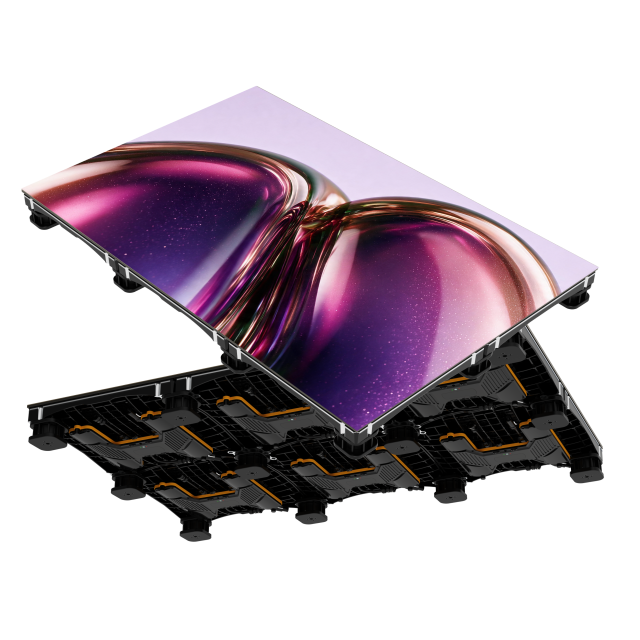

The DFmk2 Series is a digital floor solution with a high load-bearing capacity, quick disassembly, and increased cabinet protection. The anti-reflective and anti-slip surface ensures perfectly uniform blacks and outstanding visual performance under any lighting condition and at wide viewing angles. The DFmk2 Series can support up to 1500 kg/m2.

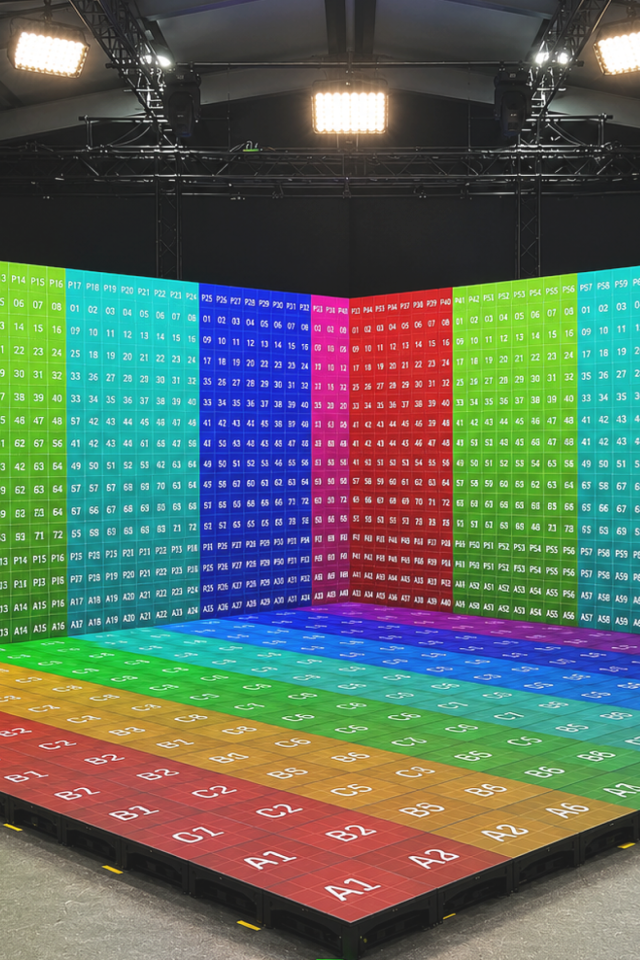

The DFmk2 Series is designed for both indoor and outdoor applications. The cabinets come flat and require a simple adjustment of the height of the feet to create a straight digital interactive dance floor, even on rough and uneven surfaces.

DFmk2 Series details
Pixel pitch 2.6, 3.9, 5.9, 7.8mm
Brightness 1500 – 3000nits
CABINET SIZE (WxHxD) 500 x 500 x 83.3mm
In / Out Indoor – Outdoor
All specifications
DFmk2 Series markets


Key features
Infiled Infiled

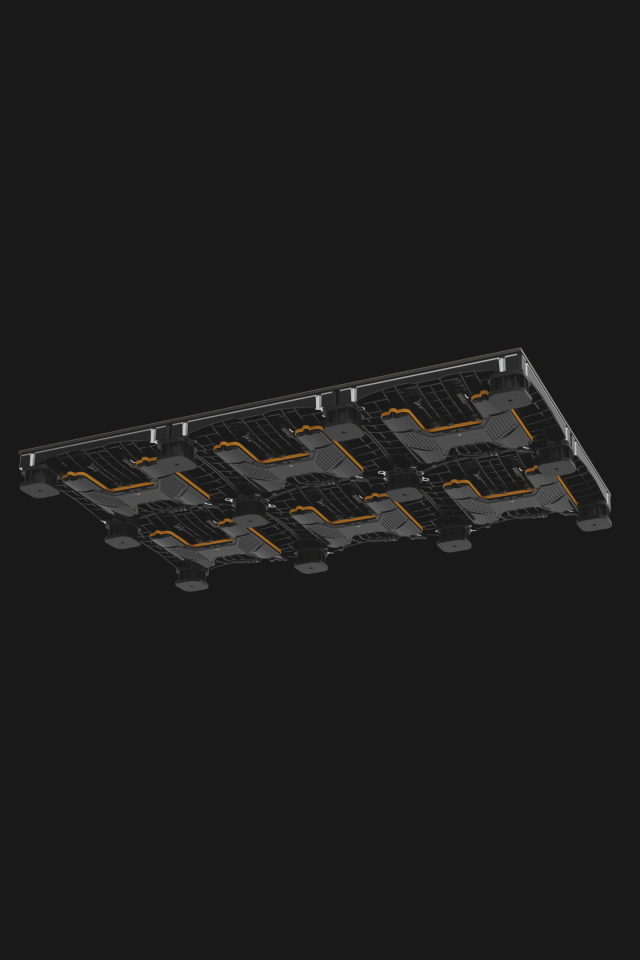

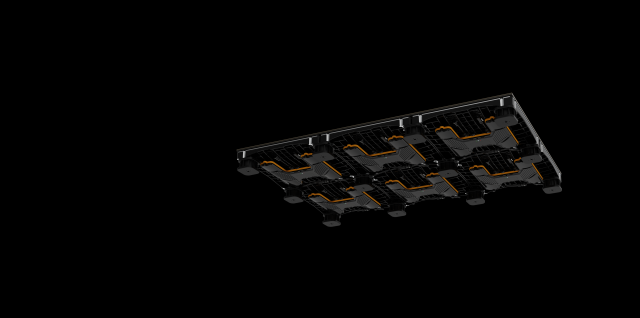

Each cabinet weighs only 10.5 kg due to its improved hollow frame.

Easy maintenance
Infiled Infiled

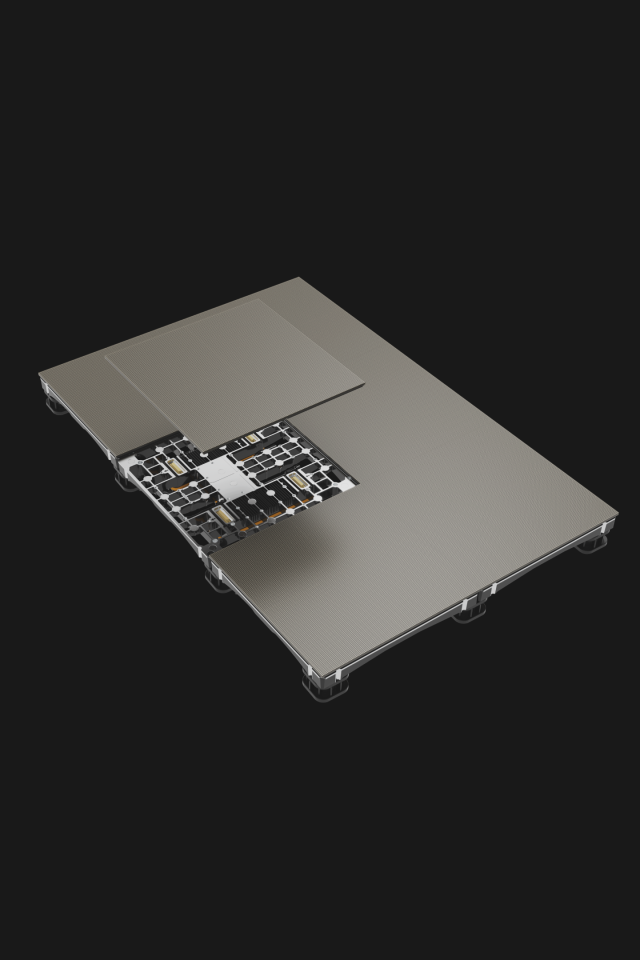

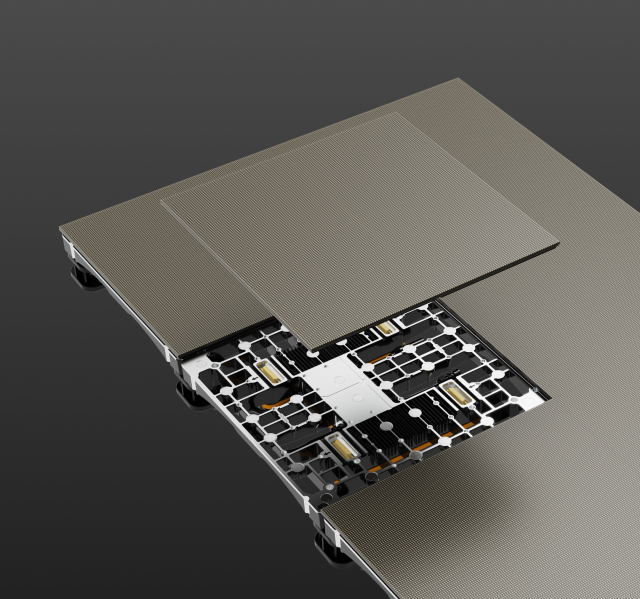

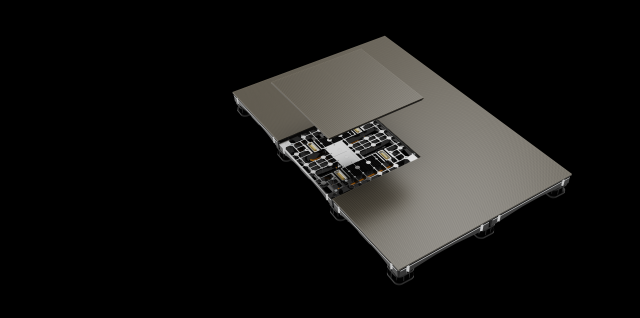

Removable magnetic modules connect to individual cabinets without affecting the operation of the entire screen. The hollow framework enables fast and tool-free disassembly. Front access service available. The universal LED modules can be interchangeable for easy installation and maintenance.

High resistance
Infiled Infiled

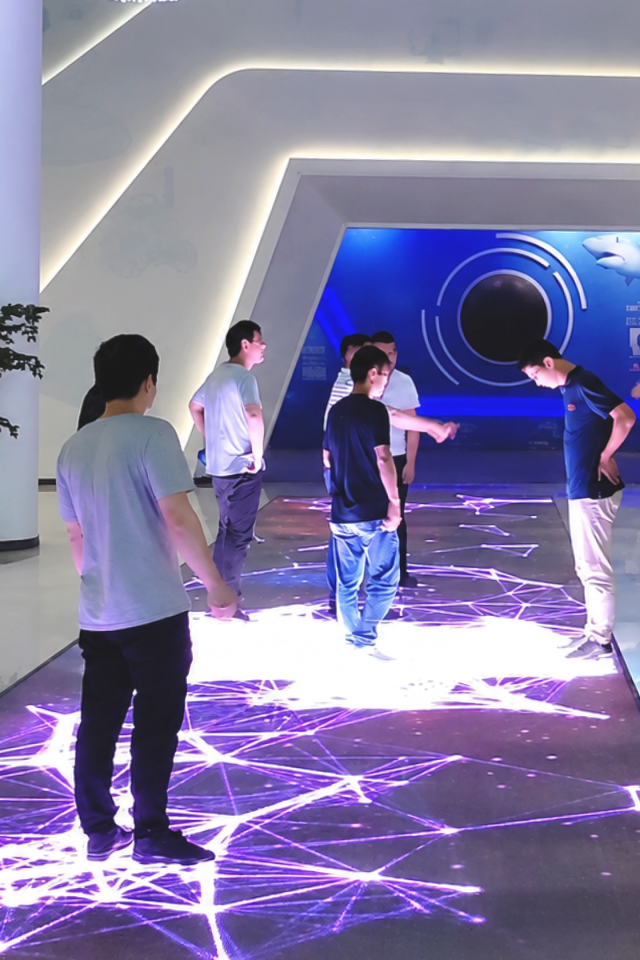

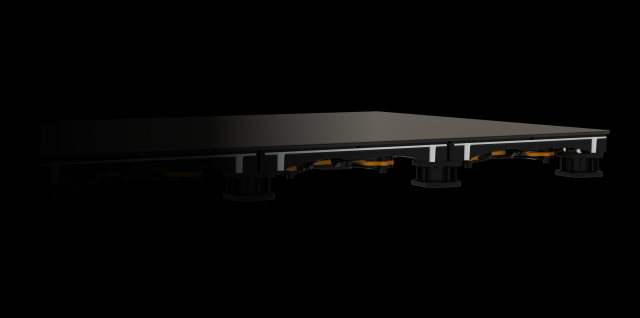

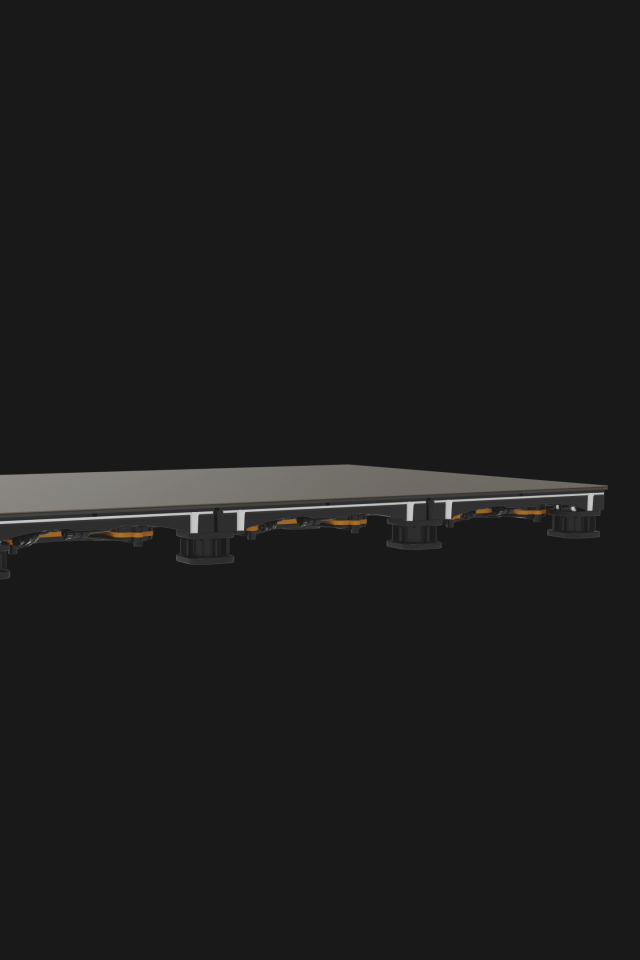

The surface is anti-slip and does not emit dazzling light. It offers IP65 rating against dust and water. The distance from the floor is 83.3mm which ensures a comfortable and safe height for steps. The DFmk2 series can support walking and jumping crowds which makes it an ideal solution for stage shows, museums etc.

Compatible with STUDIO Series
Infiled Infiled

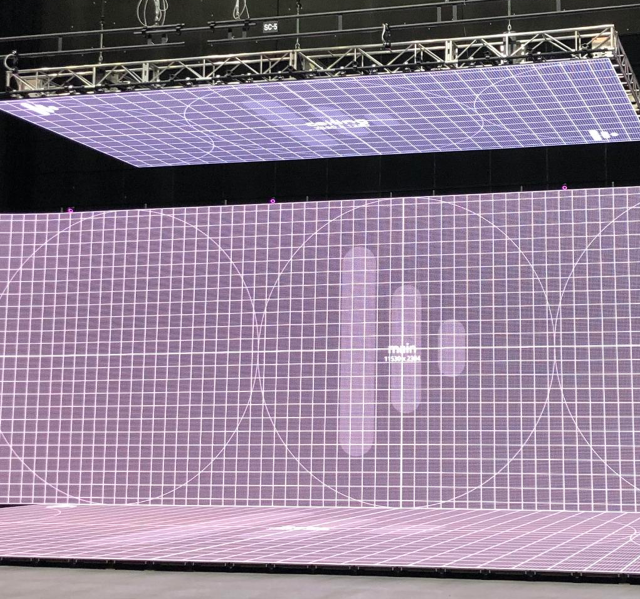

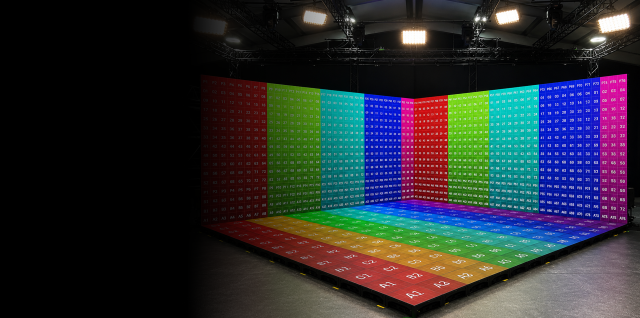

DFII Series is compatible with the rest of the STUDIO Series: STUDIO Ceiling (AR Series), Background (DB and XII series) and Floor (DFmk2).

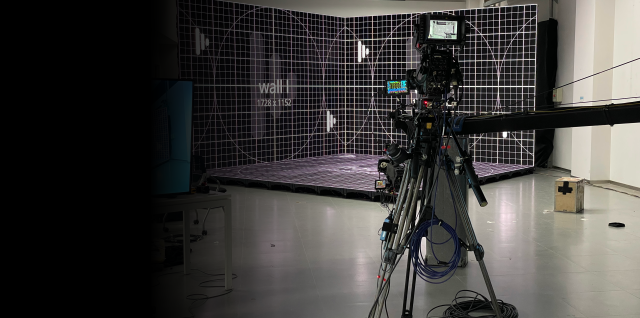

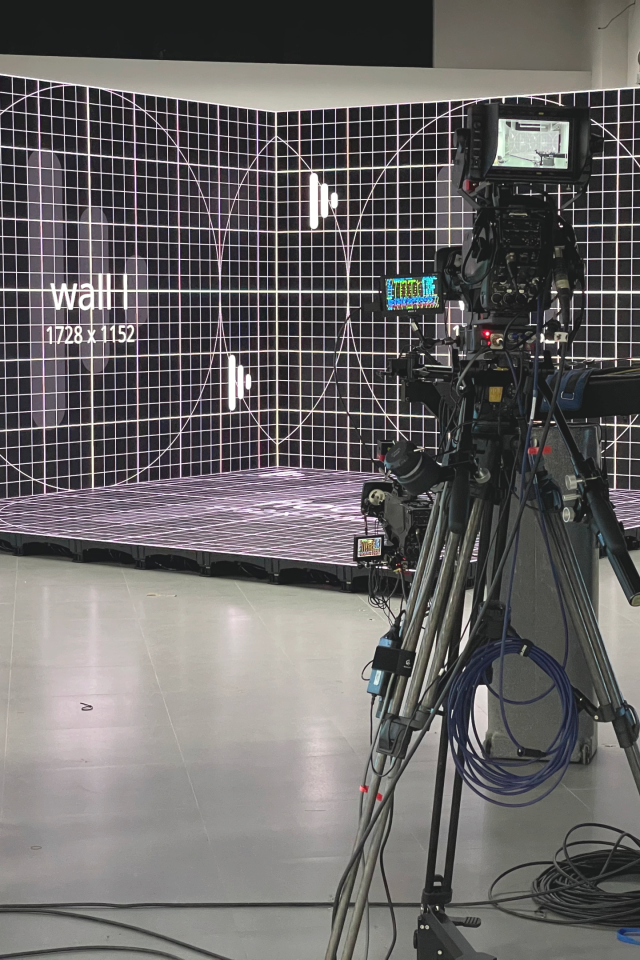

The DFII series is a great solution for flooring any xR or virtual production studio setup and is compatible with the rest of the range: STUDIO Ceiling (AR Series), Background (DB and XII series) and Floor (DFmk2).

Screens and spaces come together to move forward
In / out
Pixel pitch
Physical density
Led arrangement
Module resolution (H/V)
Module dimensions
Cabinet resolution (H/V)
Cabinet dimensions
Cabinet weight
Max power consumption (W/Panel)
Avg power consumption (W/Panel)
Viewing angle (H/V)
Scan rate
Operating power source
Operating temperature
Refresh rate
Ip rating
Signal input source
* The specifications are subject to change
