INFiLED Launches CBSF Technology for xR/VP market

November 2023 – INFiLED, a global leading manufacturer of LED displays, is delighted to announce the recent launch of its game-changing CBSF (Color & Brightness Shift Free) technology, which marks a significant leap in xR/VP market.

As the market expansion and technical development of xR technology are interdependent, INFiLED’s commitment to contributing to xR through technology will further promote the rapid development of the virtual production industry. With CBSF technology, INFiLED is setting a new benchmark for color performance in xR/VP.

INFiLED’s new solution, powered by the innovative M2 chip with chip-type LED five-sided aims to eliminate conventional LED chips which nowadays fall short of enabling accurate color reproduction due to technical limitations such as color shifts in the vertical and horizontal viewing angles and uneven brightness.

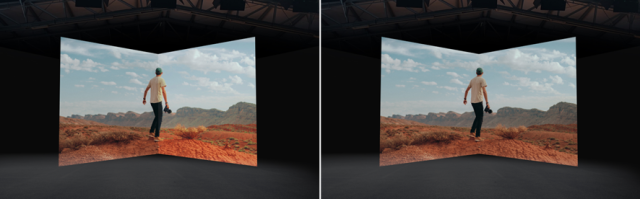

The display with CBSF technology integrated (R)

The conventional LED display (L)

About CBSF main characteristics

Color Shift Free:

The common layout of SMD RGB chips often results in a blueish or reddish hue when viewed from a wide angle. However, CBSF technology resolves this issue by harmonizing the RGB among all pixels and between adjacent pixels, resulting in consistent and stable color temperature across a wide 160 degree viewing angle. CBSF technology ensures color shift free display, allowing vibrant and accurate colors to be presented in all conditions.

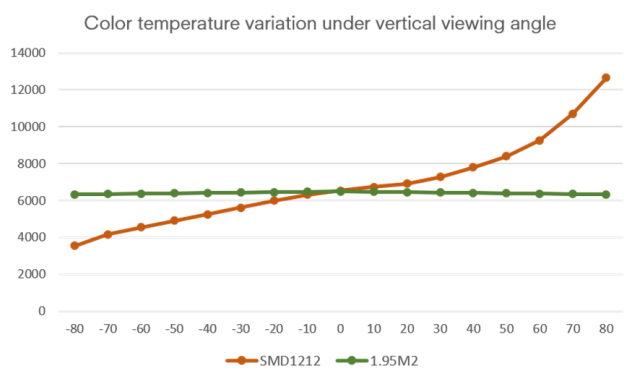

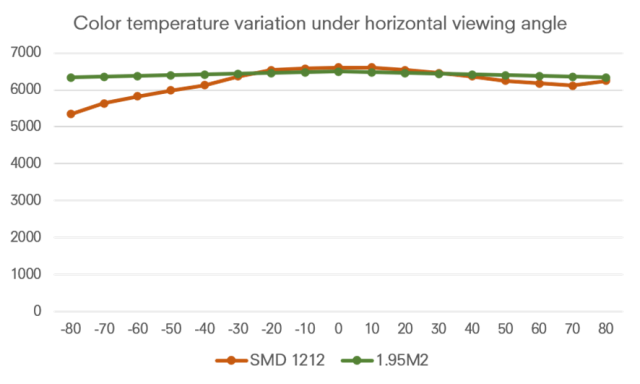

In the 160 degrees horizontal and vertical viewing angle range, 1.95M2 maintains a more consistent color temperature than conventional products.

Brightness Stability:

When deviating from the optimal viewing angle, the image may appear darker, while CBSF technology solves the problem of inconsistent brightness under different filming angles and greatly reduces the work for repeated adjustments to brightness during the recording process.

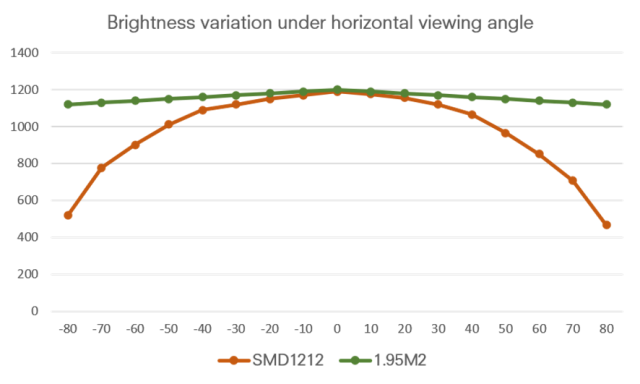

In the 160 degrees horizontal and vertical viewing angle range, 1.95M2 maintains a more consistent color brightness than conventional products.

High Contrast and Anti-glare:

To achieve better anti-glare performance, M2 utilizes a special surface treatment process for the LEDs. This effectively addresses concerns of inconsistent LED surface reflection and coloring, thereby producing a more uniform and softer display. It greatly reduces the mirror reflection effect of the light-emitting surface, resulting in the best visual effect for virtual production applications.

Soldering Stability:

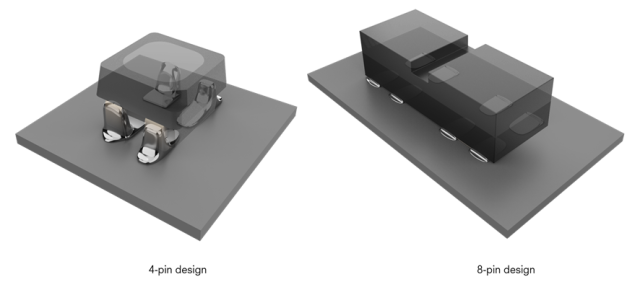

To improve the durability and stability of the LEDs, M2 uses a chip-type package with double the number of pins compared to conventional LEDs. The incorporation of an 8-pin design and an increased soldering area by 2.5 times strengthens the shearing force by four times, significantly improving the LEDs’ stability and shielding them against external chemical contamination.

Cold LED Design:

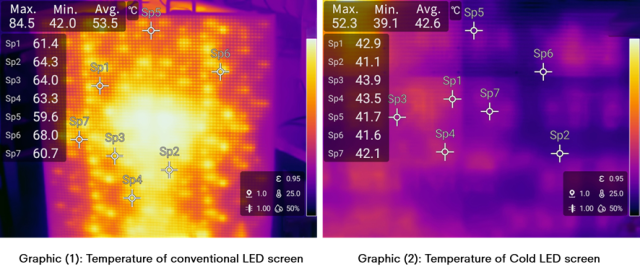

It is noteworthy that CBSF technology has achieved a significant milestone in energy-saving performance. By implementing the Cold LED technology, it has demonstrated a remarkable reduction of 30% in power consumption and a significant reduction in screen temperature compared to conventional products, all while maintaining an equivalent level of brightness.
