GXII Series

IL-RSS-ORGX5.9 mk2

Infiled
Specifications * The specifications are subject to change

© Copyright 2024 INFiLED. INFiLED is a trademark of SHENZHEN INFiLED ELECTRONICS Co, LTD. The information contained herein is subject to change without notice. INFiLED shall not be liable for technical or editorial errors or omissions contained herein. For more information, please contact your local sales manager.

Add to compare
In / out Outdoor
Pixel pitch 5.95mm
Physical density 28,224pixel/m2
Led arrangement 3in1SMD

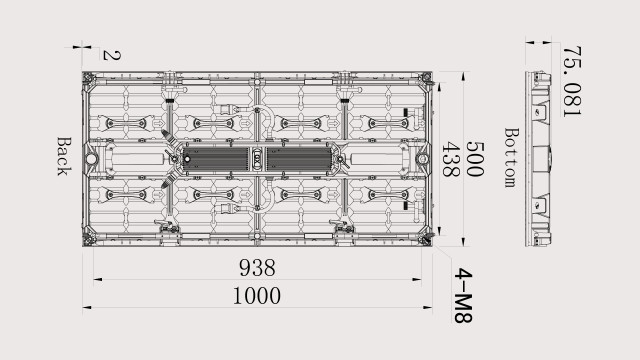

Module dimensions 500x250mm (19,69x9,84inch)
Cabinet resolution (H/V) 84x168pixels
Cabinet dimensions 500x1000mm (19,69x39,37inch)
Cabinet weight 13,5kg (29,76lb)
Brightness 5000nits
Max power consumption (W/Panel) 340
Avg power consumption (W/Panel) 113
Viewing angle H/V) 160°/135°
Scan rate 1/7
Operating power source 100-240V AC, 50/60Hz
Operating temperature -10℃~+45℃
Refresh rate 3,840Hz
Ip rating IP65
Transparency 0%
Signal input source DVI,HDMI,DP,SDI
Certifications CE, CB, FCC, CCC, RoHS
